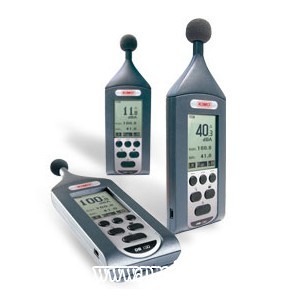

Nama Alat : Sound Level Meter and Calibrator
Type : DB-100
Product : Kimo
Specification :
| a. | Sound Level Meter | ||
| ▪ | Microphone | : | Prepolarised electret Condenser |
| : | 20 mV/Pa Nominal Sensitivity | ||
| ▪ | Standard | : | IEC 61672-1 Class2 |
| IEC 60651 Class 2 / IEC 60804 Class 2 | |||
| ▪ | Parameters | : | LA and L Aeq |
| ▪ | Other parameters | : | LAFmax, LAFmin, LASmax, LASmin |
| ▪ | Frequency weighting | : | A |
| ▪ | Measuring range | : | 30 - 130 dB |
| ▪ | Time waighting | : | Slow , Fast |
| ▪ | Data integration time for LAeq | : | From 1s to 15 min |
| ▪ | Overload indicator | : | Detected at the peak SPL |
| ▪ | Backlighted display | : | Graphic 128 x 64 pixels |
| Adjustable contrast | |||
| ▪ | Resolution | : | 0,1 dB |
| ▪ | Reference direction | : | Microphone axis |
| ▪ | Reference range | : | 30 to 130 dB |
| ▪ | Reference level | : | 94 dB |
| ▪ | Reference frequency | : | 1000 Hz |
| ▪ | Power supply | : | 3 AAA batteries |
| b. | Automatic Check | ||
| ▪ | Acoustic Signal | : | 90 dB to 1000Hz |
| ▪ | Frequency | : | 1000 Hz ± 5% |
| ▪ | Level | : | 90 dB ± 1dB |
| ▪ | Stability | : | <0,5 dB |
| ▪ | Automatic power supply | : | When being connected to the unit |
| ▪ | Dimensions | : | 140 x 28 x 25 mm (without cable) |
| ▪ | Weight | : | 50 g |
