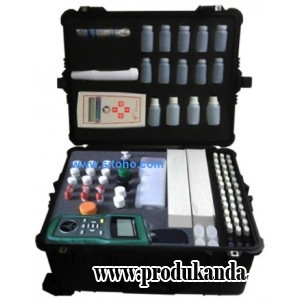

SANITARIAN FIELD KIT FOR PUSKESMAS
Type : SANPUS D-17
Specification :
| A. PARAMETER ALAT UKUR FAKTOR FISIK UDARA | |||
| Temperatur ruang | : | -10 ~ 60℃ | |
| Kelembaban | : | 20% ~ 80%RH | |
| Pencahayaan | : | 0 ~ 50,000 LUX | |
| Aliran Udara | : | 0.4 ~ 20 m/s | |
| : | 1.4 ~ 72 km/h | ||
| : | 1.3 ~ 65.7 ft/s | ||
| : | 0.8 ~ 38.9 knots | ||
| Kebisingan Suara | : | 30 ~ 130 dB(A) | |
| : | 35 ~ 130 dB(C) | ||
| B. PARAMETER FAKTOR KIMIA DAN FISIK AIR | |||
| a. Digital Main Unit | |||
| Light source | : | Multiple LED's | |
| Detectors | : | Silicon Photodiode | |
| Wavelengths | : | 425-660nm | |
| Display | : | 2 x 16 line graphics | |
| Resolution | : | 1% Transmission | |
| Accuracy | : | ±2% FS | |
| Vial size | : | 17mm Diameter | |
| Power | : | (2) AA batteries, 6 month battery life | |
| Keypad | : | 4 button | |
| Size / weight | : | 3.5" x 6.5" x 1.25 / 9.3 ounces | |
| b. Kimia Air | |||
| Ammonia | : | 0~5 mg/L (50 test) | |
| Chlorine | : | 0~4 mg/L (50 test) | |
| Iron | : | 0~4 mg/L (50 test) | |
| Manganase | : | 0~20 mg/L (50 test) | |
| Nitrate | : | 0~4 mg/L (50 test) | |
| Nitrite | : | 0~0.4 mg/L (50 test) | |
| Sulfate | : | 0~300 mg/L (50 test) | |
| Potassium | : | 0~10 ppm (50 test) | |
| c. Fisik Air | |||
| pH/ Temperature | : | -2~16pH | |
| : | 0~70 °C | ||
| Conductivity | : | 0 - 2000 µS | |
| TDS | : | 5 - 1000 ppm | |
