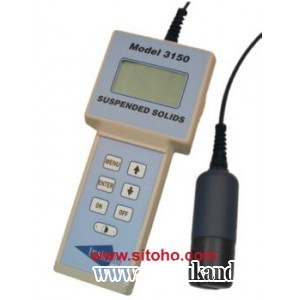

Nama Alat : Portable Suspended Solid Meter
Type : 3150-20L
Specification :
| ▪ | Measuring range | : | 0 ~ 1,500 mg/l |
| ▪ | Accuracy | : | 3% of reading or 20 mg/l |
| ▪ | Sensitivity/ Resolution | : | 1 mg/l bellow 1000 mg/l |
| : | 10 mg/l between 1,000 and 9,999 mg/l | ||
| : | 100 mg/l above 10,000 mg/l | ||
| ▪ | Repeatability | : | +/- 0,5% |
| ▪ | Sensor Drift | : | Less than 1% per year |
| ▪ | Temperature Range | : | o to 65 degrees C |
| ▪ | Sensor Check | : | Automatic self diagnostics |
| ▪ | Output | : | RS-232 serial |
| ▪ | Memory Backup | : | Yes |
| ▪ | Display | : | LCD graphic display with UV protection |
| : | Contrast adjustment via keypad | ||
| : | on demand backlighting | ||
| ▪ | Sensor Cable length | : | 20 feet |
| ▪ | Ambient temperature | : | -40 ˚C to 55 ˚C |
| ▪ | Ambient Humidity | : | 0 to 100 % |
| ▪ | Enclosure Rating | : | NEMA 4X |
| ▪ | Wetted Materials | : | Epoxy and polyurethane |
| ▪ | Maximum Pressure | : | 100 psi |
