Specification :

Pressure module :
Piezo-resistive sensor
Overpressure allowed ± 500 Pa : 250 mBar
Overpressure allowed ± 2500 Pa : 500 mBar
Overpressure allowed ± 10, 000 Pa : 1200 mBar
Overpressure allowed ± 500 mBar : 2 Bar
Overpressure allowed ± 2, 000 mBar : 6 Bar
Connection
2 pressure connectors Ø 6, 2 mm made of nickelled brass
2 pressure threaded connectors Ø 4, 6 mm of nickelled brass
+ 1 thermocouple temperature input for miniature
connectors
Thermocouple module :
Connection : 4 thermocouple temperature inputs for
thermocouple miniature connectors Type K, J or T
Class 1 ( IEC 584-3 norm)
Current / voltage module :
Connection : 2 stereo jacks

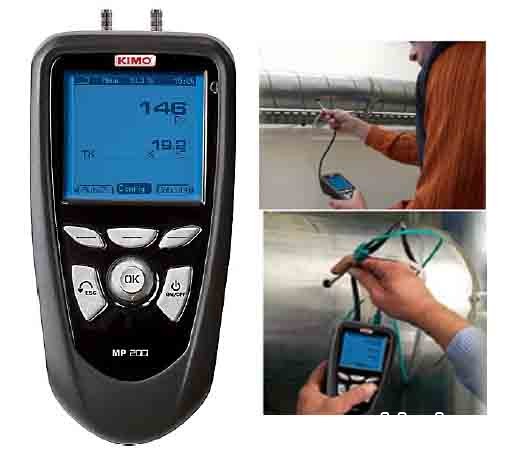

MP200 connection :

On the top :
2 secured mini-DIN connectors for SMART-Plus probes
Left side :
1 USB port for KIMO cable only
1 power supply plug

Display
Graphic display 128x128 pixels
Dim. 50 x 54 mm
Blue backlight
Display of 6 measurements
