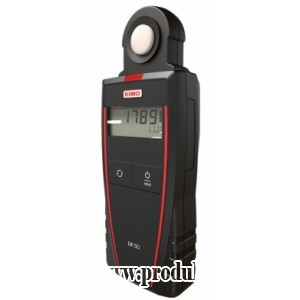

PORTABLE LUX METER
TYPE : LX50
Product : KIMO Instruments
Spesifikasi :
| ▪ | Measuring units | : | lux, klux, fc |
| ▪ | Measuring range | : | From 0 to 10000 lux / From 0 to 10 klux |
| : | From 0 to 929 fc | ||
| ▪ | Accuracy* | : | ±3% of reading ±3 lux |
| ▪ | Resolution | : | From 0 to 999.9 lux : 0.1 lux / from 1000 to 10000 lux : 1 lux |
| : | From 0 to 0.9999 klux : 0.0001 klux / from 1 to 10 klux : 0.001 klux | ||
| : | From 0 to 99.99 fc : 0.01 fc / from 100 to 929 fc : 0.1 fc | ||
| ▪ | Measuring element | : | Silicon Photodiode |
| ▪ | Spectral range | : | In accordance with the standard photopic curve |
| V (λ) NF C 42-710 class C | |||
| ▪ | Estimation of uncertainty on V(λ) (f1) | : | <10% |
| ▪ | Directional sensitivity (f2) | : | <6% |
| ▪ | Linearity | : | <3% |
| ▪ | Operating temperature | : | From 0 to +50 °C |
| ▪ | Storage temperature | : | From -10 to +70 °C |
| ▪ | Power supply | : | 4 batteries AAA LR03 1.5 V |
| ▪ | Battery life | : | 20 hours |
| ▪ | Conformity | : | Directives CEM 2004/108/CE and NF EN 61 |
