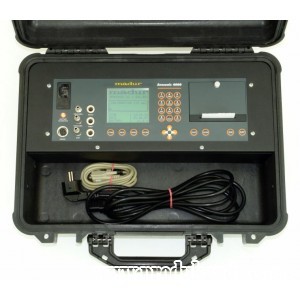

Portable Flue Gas Analyzer
Type : 4000
Product : Sensonic
Specification :
| ▪ | Parameteres |
| 1 |
O2 : 0 - 25% |
| 2 | CO : 0 - 20,000 ppm |
| 3 | SO2 : 0 - 5000 ppm |
| 4 | NO2 : 0 - 1000 ppm |
| 5 | CO2 (Calculated) |
| ▪ | Processing and presentation of measured data |
| - | All results shown on display |
| - | Averaging of all measured values time: 10 sec - 60min |
| - | Graphical presentation of all measured values as diagram |
| - | Memory capacity for 1024 sets of data |
| - | Up to 9 separate items in a data set |
| - | User definition of the 9 items |
| - | Memory capacity for 30 reports |
| - | Data logger function for the analogue inputs |
| - | All measured values, stored values or displays can be |
| printed on the internal printer. | |
| - | Powerful PC program for analyser settings and data comm |
| ▪ | Display : Graphical - LCD, with backlight and |
| variable contrast,128x112pixels,75x64mm | |
| ▪ | Printer : High-speed dot matrix printer with graphic |
| capability for 57mm normal papers | |
| ▪ | Data Memory : Memory for 30 reports and 10 banks |
| containg a total of 1024 set of data | |
| ▪ | Interface : RS232C |
| ▪ | Power supply : 110/220V AC 50 ÷ 60Hz |
| ▪ | Charging time : Lead-acid battery 12V / 2.2Ah, charging |
| time 10 h working time approx. 6h | |
| ▪ | Gas pump : Membrane pump, electronically regulated |
| at 90l/h | |
| ▪ | Probe : Probe Heated for soot test |
| ▪ | Probe length 300 mm |
| ▪ | Length of gas line 3 m |
| ▪ | Gas filter In line filter 20 μm |
| ▪ | Size : 270 x 175 x 245mm |
| ▪ | Weight : ±6,2 kg |
