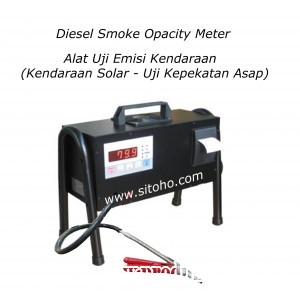

Nama alat : PORTABLE DIESEL OPACITY SMOKE METER
Type : SLS-201
Spesifikasi :
| ▪ | Measuring item | : | Smoke opacity ( %, k [m-1] ) |
| : | RPM (option), °C (option) | ||
| ▪ | Principle | : | Light extinction method |
| ▪ | Light source | : | Green LED(565nm) |
| ▪ | Detector | : | Photo diode |
| ▪ | Range | : | 0.0~100.0% (0.00~21.42m-1 ) |
| ▪ | Accuracy | : | Less than 1% |
| ▪ | Warm-up time | : | 3~6 minutes |
| ▪ | Display time | : | 4 times /sec |
| ▪ | Power | : | 220V / 110V AC 50/60Hz |
| ▪ | Temperature | : | -10~40℃ |
| ▪ | Dimension | : | 450(W) x 200(D) x 245(425)(H) mm |
| ▪ | Weight | : | About 7kg |
| ▪ | Option | : | Main Unit |
| : | RPM/ Oil temp. | ||
| : | Built-in printer | ||
| : | NDF filter |
