B O2 seri termasuk Mikroskop dengan desain yang bagus, sistem DIN160mm optik, Koehler illuminator 20Watt dan 30 Watt. cocok untuk laboratorium dan lembaga penelitian.

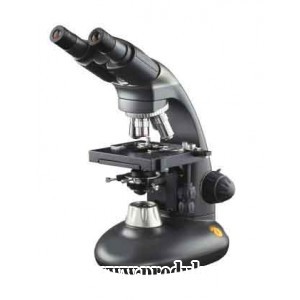

MICROSCOPES BIOLOGICAL

Type : B 02

Product : Italia

B O2 series include Microscopes with nice design, DIN160mm optic system, Koehler illuminator 20Watt and 30 Watt. suitable for laboratories and research institutes.

Biological Microscope with standard DIN 160mm optics, parfocal objectives.
Head is tilted 30° and 360° rotable.
Interpupillary distance can be set from 55mm to 75mm; dioptric difference: ±5 mm.
Coaxial focus mechanism macrometric and micrometric, division 0.002 mm, with tension and limit adjustable.

SERIES			MODELS
BO2			BO2B-AC	BO2B-SP	BO2B-PL	BO2T-AC	BO2T-SP	IO2T-PL
Head
	Binocular	30° / 360°	●	●	●
	Trinocular	30° / 360°				●	●	●
Eyepieces	wide field	WF 10X/18	●	●	●	●	●	●
Eyepieces	wide field	WF 16X/11	○	○	○	○	○	○
Objectives	Achromatic	4x/0.1	●			●
		10x/0.25	●			●
		40x/0.65	●			●
		100x/1.25	●			●
	Semiplan Achromatic	4x/0.1		●			●
		10x/0.25		●			●
		40x/0.65		●			●
		100x/1.25		●			●
	Plan Achromatic	4x/0.1			●			●
		10x/0.25			●			●
		40x/0.65			●			●
		100x/1.25			●			●
Nosepiece		quadruple	●	●	●	●	●	●
Nosepiece		quintuple	○	○	○	○	○	○
Stage	base: 135x125mm; excursion: 35mmx75mm		●	●	●	●	●	●
Condenser	Abbe N.A. 1.25, with height regulation and filter seat		●	●	●	●	●	●
Illuminator	Koehler with field diaphram		●	●	●	●	●	●
Light source	Halogen 20W, adjustable intensity		●	●	●	●	●	●

●included
○optional

SERIE			MODELLI
B O2			B O2B-30W	B O2T-30W	B O2B-PH	B O2T-BH
Head
	Binoculare	30° / 360°	●		●
	Trinoculare	30° / 360°		●		●
Eyepieces	a largo campo	WF 10X/18	●	●	●	●
Eyepieces	a largo campo	oculare di Bertrand			●	●
Objectives	Plan Acromatici	4x/0.1	●	●	●	●
		10x/0.25	●	●	●	●
		40x/0.65	●	●	●	●
		100x/1.25	●	●	●	●
	Plan Acromatici a contrasto di fase	10x/0.25			●	●
		20x/0.40			●	●
		40x/0.65			●	●
		100x/1.25			●	●
Nosepiece	in posizione invertita	quadruplo	○	○	●	●
Nosepiece	in posizione invertita	quintuplo	●	●	○	○
Stage	meccanico 135x125mm; escursione: 35mmx75mm		●	●	●	●
Condenser	di Abbe A.N. 1.25, con regolazione altezza e porta-filtri		●	●
Condenser	a torretta per contrasto di fase, a 5 posizioni (10,20,40,100,BF)				●	●
Illuminator	con diaframma di campo (Koehler)		●	●	●	●
Light source	Alogena 30W, regolabile in intensità luminosa		●	●	●	●

●included
○optional

Accessories:

	Fiber optics illuminator Cold loght illuminator with fiber optics (double arms or ring), for general use and for stereo microscopes



	LED Illuminators LED Illuminators for stereo microscopes, adjustable light intensity



	Neon fluorescent illuminator 8W Neon fluorescent illuminator



	X-Y translation stage XY translation stage. Suitable for trasmitted and reflected illumination microscopes, useful for a wide range of applications, in the industry, in medical work, in scientific work. Can be used with stereo heads.



	Biological slides biological, botanic, zoological slides for observation under microscope



	Hand Microtome Hand Microtome for preparation of histological tissue sections



	CCTV lens 16mm



	Optical Optical and adaptors for Biological, Stereo, Inverted, Metallographic, Fluorescence and Polarization Microscopes
