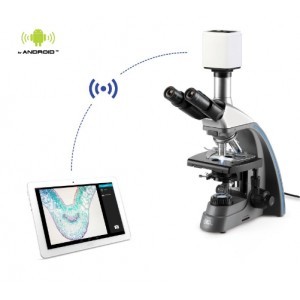

MICROSCOPE TABLET CAMERA SYSTEM
Type : TABKAM X1
Specification :
| 1. MICROSCOPE | |||
| ▪ | Application | : | Research, Laboratory use and Medical field operations |
| ▪ | Optical System | : | Infinity Corrected optics system |
| ▪ | Illumination | : | Built in transmitted Koehler illumination with field |
| diaphragm 6V 30W Halogen bulb | |||
| ▪ | Eyepieces | : | Extra Wide field WF10x/22 mm |
| ▪ | Objectives | : | PLAN ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65; |
| : | 100x/1.25 (oil immersion) | ||
| ▪ | Focusing | : | Macrometric and micrometric coaxial knobs on both |
| sides (0,002mm) | |||
| ▪ | Observation tube | : | Binocular /Trinocular |
| : | Tube inclination 30° tilted, 360° rotable | ||
| : | Interpupillary distance adjustment 55-75mm | ||
| : | Light path sensor (trinocular 100%-0% or 0%-100% | ||
| ▪ | Stage | : | 193 x 155mm. Excrution XY: 75X50mm (division 0,1mm) |
| Coaxial knobs on right side | |||
| ▪ | Condenser | : | Abbe condenser, N.A 1.25. Equipped with diaphram and |
| and filter seat. Height and centering are adjustable | |||
| ▪ | Accessories | : | Protection Cover |
| : | Oil Bottle | ||
| : | Certificate of origin for Chamber of Commerce | ||
| : | Manual Book | ||
| 2. CAMERA | |||
| ▪ | Optical | : | CMOS Sensor 1/3" |
| ▪ | Sensor resolution | : | 2.0 Mpixel |
| ▪ | WIFI resolution | : | 1,3 Mpixel |
| 3. TABLET | |||
| ▪ | Operating system | : | Android 4x |
| ▪ | CPU | : | Processore intel @ Atom (TM), 1,33 GHz |
| ▪ | Internal memory | : | 16GB |
| ▪ | Network | : | 802.11bgn wireless, Bluetooth |
| ▪ | Interfaces | : | HDMI, micro SD up to 32GB, Audio |
