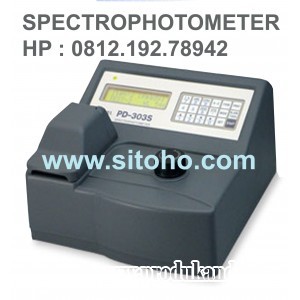

DIGITAL SPECTROPHOTOMETER
Model : PD-303S
Brand : Apel (Jepang)
| SPECIFICATION : | |||
| Wavelength range | : | 340nm to 1000nm | |
| Wavelength width | : | 8nm in the entire region | |
| Wavelength accuracy | : | +/-2nm at 430 and 585nm | |
| Wavelength scale | : | 1nm scale | |
| Spectroscope | : | Diffraction grating, | |
| : | Number of grooves 1200lines/mm | ||
| Stray radiant energy | : | <0.5%T | |
| Display | : | LCD display | |
| Photometric range | : | -0.200 to 3.000ABS | |
| : | 0.0 to 200%T | ||
| : | 0.000 to 2000C | ||
| Photometric accuracy | : | +/-2%T | |
| Measuring mode | : | 1.Normal mode | |
| : | 2.Timer mode | ||
| Detector | : | High sensitivity silicon photocell | |
| Light source | : | Bright intensity lamp | |
| Sample volume | : | 1.0mL (minimum) | |
| Sample container | : | Round cuvette, Square cuvette | |
| Printer interface | : | Centronics (D-SUB 25 pins) | |
| : | * Printer is not included in the | ||
| : | standard accessories. | ||
| Serial interface | : | RS-232C (D-SUB 9 pins) | |
| Power Requirement | : | 100 - 240VAC 50/60Hz 9W | |
| Dimensions | : | 270(W)x285(D)x155(H)mm (main body) | |
| Weight | : | Net 4.8kg (main body) | |
