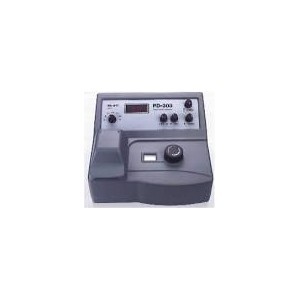

DIGITAL SPECTROPHOTOMETER
Type : PD-303
| SPECIFICATION : | |||
| * | Wavelength Range | : | 340 - 1000 nm |
| * | Wavelength Width | : | 10nm in entire region |
| * | Wavelength Accuracy | : | +/-2nm at 365 and 546nm |
| * | Wavelength Scale | : | 2nm scale |
| * | Spectroscope | : | Diffraction grating 1200lines/mm |
| * | Stray Radient Energy | : | <0.5%T typical at 340nm with |
| : | appropriate stray light filter | ||
| * | Display | : | 3 1/2 digits LED |
| * | Photometric Range | : | 0 - 1.999ABS |
| : | 0 -100%T | ||
| : | 0 - 1999C | ||
| * | Photometric Accuracy | : | +/-2%T |
| * | Detector | : | High sensitivity silicon photocell |
| * | Light Source | : | Long-life tungsten lamp with lens |
| * | Sample Volume | : | 1.0ml min. |
| * | Sample Container | : | Square cuvette 10x10x45(L)mm |
| : | Round cuvette 10(ID), 12(OD), 105(L)mm | ||
| * | Power Requirement | : | 100 - 240VAC 50/60Hz 15W |
| * | Dimensions | : | 270(W)x285(D)x155(H)mm (main body) |
| * | Weight | : | Net 4kg (main body) |
