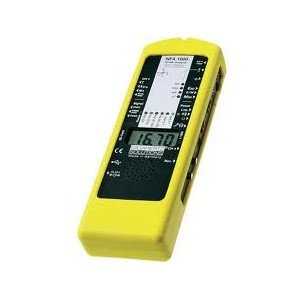

DATALOGGING ELECTROMAGNETIC FIELD ANALYSER
Type : NFA1000
Negara asal : Germany
DATALOGGING ELECTROMAGNETIC FIELD ANALYSER, Alat ukur analisa radiasi medan elektomagnetik tiga dimensi dengan frekuensi tinggi hasil pengukuran tersimpan dalam memori dan dapat di transfer ke komputer. Portable, simpel dan mudah dioperasikan dilengkapi dengan manual books dan sertifikat kalibrasi
Specification :
| Frequency Range: | 5 Hz to 1000 KHz (compensated), also includes modern power adapter radiation, reducible to 400 KHz for TCO measurements |
| Measurement Range: | Magnetic flux density: 1 - 19999 nT |
| Electrical flux density: 0.1 - 1999 V/m | |
| Accuracy: | 50 / 60 Hz: +/- 5 % |
| 16 Hz - 30 kHz: +/- 1 dB | |
| 5 Hz - 1000 kHz: +/- 2 dB | |
| Isoptropic deviation: +/- 1.5 dB | |
| Offset +/- 5 digits | |
| Sensor: | Electrical field strength, potential free, 3D |
| Electrical field strength, non-isolated | |
| Magnetic flux density, 3D | |
| Audio Analysis: | Field-strength-proportional acoustic signal (with "Geiger counter" effect), switchable |
| Electric power supply: | 7.4-Volt Li-ion high quality battery pack (included) |
| Average operating life in the logging mode 36 h | |
| Low-batt indication | |
| Auto-Power-Off function (saves capacity and is deactivated during longterm measurements) | |
| Power supply unit included | |
| Signal Rating: | trueRMS, Peak, Peak Hold |
| Further Questions: | Two years warranty |
| Weight: | 1,5 kg |
