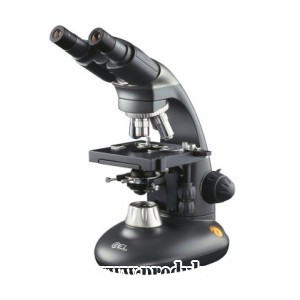

Binocular Microscope
Type : BI-02B
Negara Asal : ITALY
Specification :
| ▪ | Application | : | Laboratory and Education |
| ▪ | Optical System | : | Standard DIN 160mm system |
| ▪ | Illumination | : | Built in transmitted Koehler illumination |
| with field diaphragm 6V 30W Halogen bulb | |||
| ▪ | Eyepieces | : | Wide field WF10x/18mm |
| ▪ | Objectives | : | AC ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65; |
| 100x/1.25 (oil immersion) | |||
| PL ACHROMATIC 4x/0.1; 10x/0.25; 40x/0.65; | |||
| 100x/1.25 (oil immersion) | |||
| ▪ | Focusing | : | Macrometric and micrometric coaxial knobs |
| on both sides (0,002mm) | |||
| ▪ | Observation tube | : | Binocular |
| Tube inclination 30° tilted, 360° rotable | |||
| Interpupillary distance adjustment 55-75mm | |||
| ▪ | Stage | : | 135 x 125mm. Excrution XY: 75X35mm |
| (division 0,1mm) Coaxial knobs on right side | |||
| ▪ | Condenser | : | Abbe condenser, N.A 1.25. Equipped with diaphram and |
| and filter seat. Height and centering are adjustable | |||
| ▪ | Accessories | : | Protection Cover |
| : | Oil Bottle | ||
| : | Certificate of origin for Chamber of Commerce | ||
| : | Manual Book |
