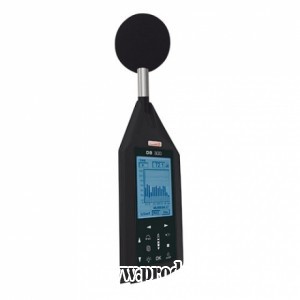

SOUND LEVEL METER
Model : DB300
Product : KIMO
Specification :
| Range | : | 30-137 Dba | |
| : | 35-137 dBC (Z) | ||
| : | 83-140 dBC (Z) | ||
| : | Leq 25-137dB (filters by octave bands 31.5 Hz-8 kHz) | ||
| Accuracy | : | Class 2 - NF EN 61672-1 | |
| Microphone | : | Electret – ½'' - Sensibility : 45 mV/Pa | |
| Measurement dynamic | : | Lp / Leq : 107 dB - Lpk : 57 dB | |
| Weightings | : | F (fast) – S (slow) – I (impulse) – U (peak) | |
| Logging time | : | 1/16s – 1/8s – 1/4s – 1/2s – 1s to 60 s (step of 1 s) | |
| Preamplifier | : | removable – extensions of 3 – 5 – 10 m on request | |
| Screen | : | Graphical display 240 x 160 pixels | |
| : | LCD monochrome 16 levels | ||
| : | Digital and analogue | ||
| : | Display – 3D effect on display | ||
| Keypad | : | 8 sensitive keys | |
| Clock | : | Permanent, saved by internal battery | |
| : | Accuracy better than 0.005% | ||
| Memory module | : | Removable Micro SD card 2Go | |
| Environment | : | from -10 °C to +50 °C | |
| Humidity | : | from 0 to 90% RH | |
| Size (L x l x e) | : | 270 x 70 x 40 mm | |
| Weight | : | (batteries included) 355 gr | |
| Fixing | : | Insert at rear for fixing on tripod | |
| Standard | : | NF EN 61672-1 (2002) – NF EN 60651 (1979) | |
| NF EN 60804 (2000) – CEI 61260 | |||
| : | EN 61010 – EN 61000 generic and as per product standar | ||
