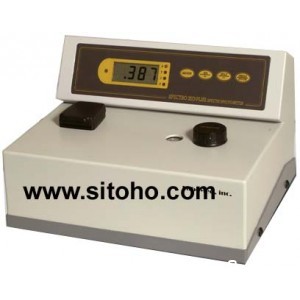

Spectrophotometer
Type : 20D plus RS-232
Spesifiaction :
| ▪ | Wavelength Range | : | 330-1000nm. |
| ▪ | Spectral bandwidth | : | 6nm. |
| ▪ | Data Processing | : | Microprocessor |
| ▪ | Wavelength Accuracy | : | +- 1nm. |
| ▪ | Wavelength Repeatability | : | +- 1nm. |
| ▪ | Optical System | : | Grating, 1200 lines/mm. |
| ▪ | Stray Light | : | <-0.5%T at 340 nm & 400nm. |
| ▪ | Display | : | 3.5 LCD |
| ▪ | Photometric Range | : | 0 to 2.5 ABS |
| : | 0 to 100& T | ||
| : | 0 to 1999C (0 to 1999F) | ||
| ▪ | Zero & Blank set | : | Automatic |
| ▪ | Photometric Accuracy: | : | +- 1%T |
| ▪ | Drift | : | -<0.003 A/hour after warming up |
| ▪ | Detector | : | Silicon Photodiode |
| ▪ | Light Source: | : | Tungsten Halogen lamp, 6V 10W |
| ▪ | Sample Volume | : | 0.4ml (minimum) |
| ▪ | Sample Container | : | Round and Square cuvette |
| ▪ | Data Output | : | Analog output, RS 232C interface, Printer (SEIKO dpu-414) |
| ▪ | Power Requirements | : | 110-240V. AC, 50/60Hz., Selected automatically |
| ▪ | Dimensions | : | 330 (W) x 130 (H) x 270 (D) mm. |
| ▪ | Net Weight | : | 5.2 kg. |
